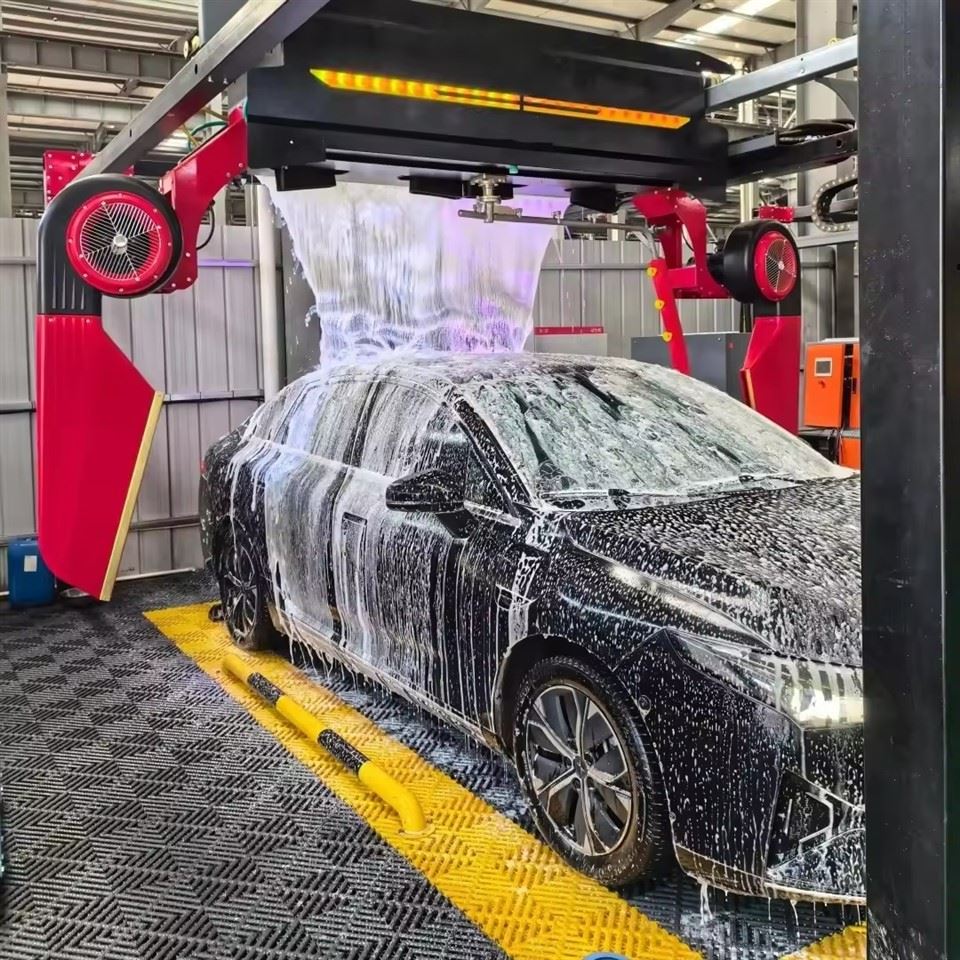

Fast High Speed Brushless Car Wash Machine – Rapid-Cycle Scratch-Free Cleaning System for Peak-Hour Commercial Hubs
Tailored for high-traffic car wash chains, highway service stations and fleet rapid maintenance depots, this fast high speed brushless machine solves the critical pain point of slow cleaning cycles that cause customer queues and lost revenue during peak hours. Unlike conventional washers that compromise speed for surface safety, it combines a high-performance brushless motor with optimized contactless cleaning technology to slash single-vehicle processing time, while delivering 100% scratch-free protection for all paint types, from standard finishes to premium ceramic coatings and matte wraps.
The machine's brushless motor core generates consistent, high-torque power to drive a precision spray system that targets grime efficiently without redundant passes. Its intelligent path-planning algorithm optimizes spray arm movement, ensuring full coverage of vehicle surfaces-from body panels to wheel wells-in a streamlined workflow. The contactless design eliminates physical wear on both the machine and vehicles, while the motor's energy-efficient operation avoids power surges even during continuous high-speed runs, supporting steady performance through morning and evening rush hours.
Built with heavy-duty corrosion-resistant components, this high-speed washer requires minimal maintenance, with no carbon brush replacements needed to sustain fast-cycle operations. It fits seamlessly into both indoor and outdoor commercial setups, with user-friendly preset modes that allow staff to switch between quick express washes and thorough cleans with one click. For operators, it translates to higher daily throughput, shorter customer wait times and improved profit margins, all while upholding strict surface care standards to build customer loyalty.
Hot Tags: fast high speed brushless car wash machine, China fast high speed brushless car wash machine manufacturers, suppliers, automatic car wash machine, Automatic Touchless Car Wash Equipment, Commercial 360 Touchless Car Washer, Contour Following Touchless Car Wash Machine, High Quality Touchless Car Washing Machine, Touchless Car Wash Machine
|
Item |
Specification |
|
Parameter Category |
360 Basic Model |
|
Installation Site Size |
L7.0'*W4.0'*H3.0m |
|
Max Vehicle Size |
L5.6'*W2.6'*H2.0m |
|
Power & Voltage |
GB 6 pole water pump motor 15KW/380V |
|
4 sets 5.5KW/380V Plastic fans (6000rpm) |
|
|
Pump |
90-100 KG/CM² |
|
Water Consumption |
90-140L/Circlie rinsing |
|
Power Consumption |
0.5-1.2 KWh |
|
Chemical Liquid Consumption |
20-150ML (Adjustable) |
|
Washing Time |
3-8 minutes (Adjustable) |
|
Functions |
1. Chassis/hub rinsing |
|
2. Pre-soak form |
|
|
3. High concentration foam |
|
|
4. Standard high-pressure 360° rinsing |
|
|
5. 4 working programs (customization) |
|
|
6. Self-cleaning pipeline |
|
|
7. Mobile phone remote operation |
|
|
8. Foam saving system |
|
|
9. Enhanced cleaning in front/rear area |
|
|
10. Automatic proportioning system (3 kinds of liquid) |
|
|
11. 3D detection |
|
|
12. Water & electricity separation |
|
|
13. Walking on rails-Synchronous belt |
|
|
14. Rust-proof pipeline (304 + high-pressure pipe) |
|
|
15. Frequency conversion system (heavy-load 18.5KW) |
|
|
16. Plunger pump and motor connected by direct drive technology |
|
|
17. One-button start/restart |
|
|
18. Counting for car wash QTY (total/range) |
|
|
19. Electricity leakage protection system |
|
|
20. Fault self-test system |
|
|
21. Operation permission system |
|
|
22. Fault alarm and recording |
|
|
23. Remote controller/touch screen operation |
|
|
24. Water level monitoring |
|
|
25. Water shortage protection |
|
|
26. Intelligent double anti-collision system: by motor&mechanical way |
|
|
27. Moving body double layer anti-corrosion: hot dip galvanized+spray treatment |
|
|
28. Water wax coating |
